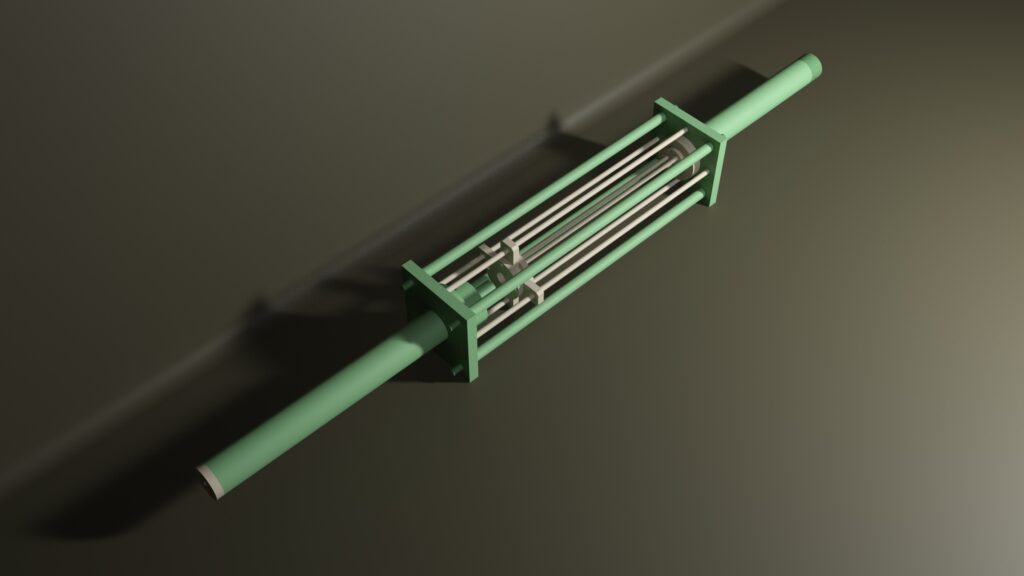

PTFE Paste Extruder for Liners
A PTFE paste extruder is a specialized machine used in the cold extrusion of PTFE (Polytetrafluoroethylene) liners, typically used in pipes, tubes, bellows, and chemical equipment. PTFE cannot be melt processed like other thermoplastics because of its high melting point (~327°C) and extremely high viscosity in the molten state. Instead, paste extrusion is used, especially for products like liners ranging from 2” to 24”in diameter.
Purpose of PTFE Paste Extruder for Liners
The PTFE paste extruder for liners is designed to:
- Form seamless PTFE liners for pipes or equipment.
- Maintain high dimensional accuracy and mechanical integrity.
- Produce long continuous lengths of liner without joints.
- Be compatible with various die and mandrel designs depending on liner size.
PTFETech provides a robust fixed-barrel extruder design specifically engineered for PTFE liner extrusion. Unlike barrel-changeable systems that are sometimes adopted for multi-size production, PTFETech strongly recommends the use of a fixed-barrel configuration to ensure optimal product quality and consistency.
Changeable barrel systems often lead to thickness variations in PTFE liners due to minor alignment issues, assembly tolerances, or uneven pressure distribution during extrusion.
To avoid these problems, PTFETech’s fixed-barrel extruder design ensures:
Superior liner concentricity
Uniform wall thickness
Consistent extrusion pressure and material flow
Enhanced machine stability and repeatability
Customers have two options when adopting the PTFETech extruder design:
In-house fabrication using detailed engineering drawings and design specifications provided by PTFETech.
Fabrication through PTFETech’s approved vendors, who have extensive experience in manufacturing precision PTFE extrusion machinery and can ensure compliance with all technical requirements.
By choosing PTFETech’s fixed-barrel solution, clients benefit from:
High-quality, defect-free PTFE liners
Long-term reliability of the extrusion system
Lower maintenance and downtime
Greater control over production parameters
In summary, PTFETech’s fixed-barrel extruder design is the preferred solution for achieving consistent, high-performance PTFE liner production while minimizing the risks associated with modular or changeable systems.
